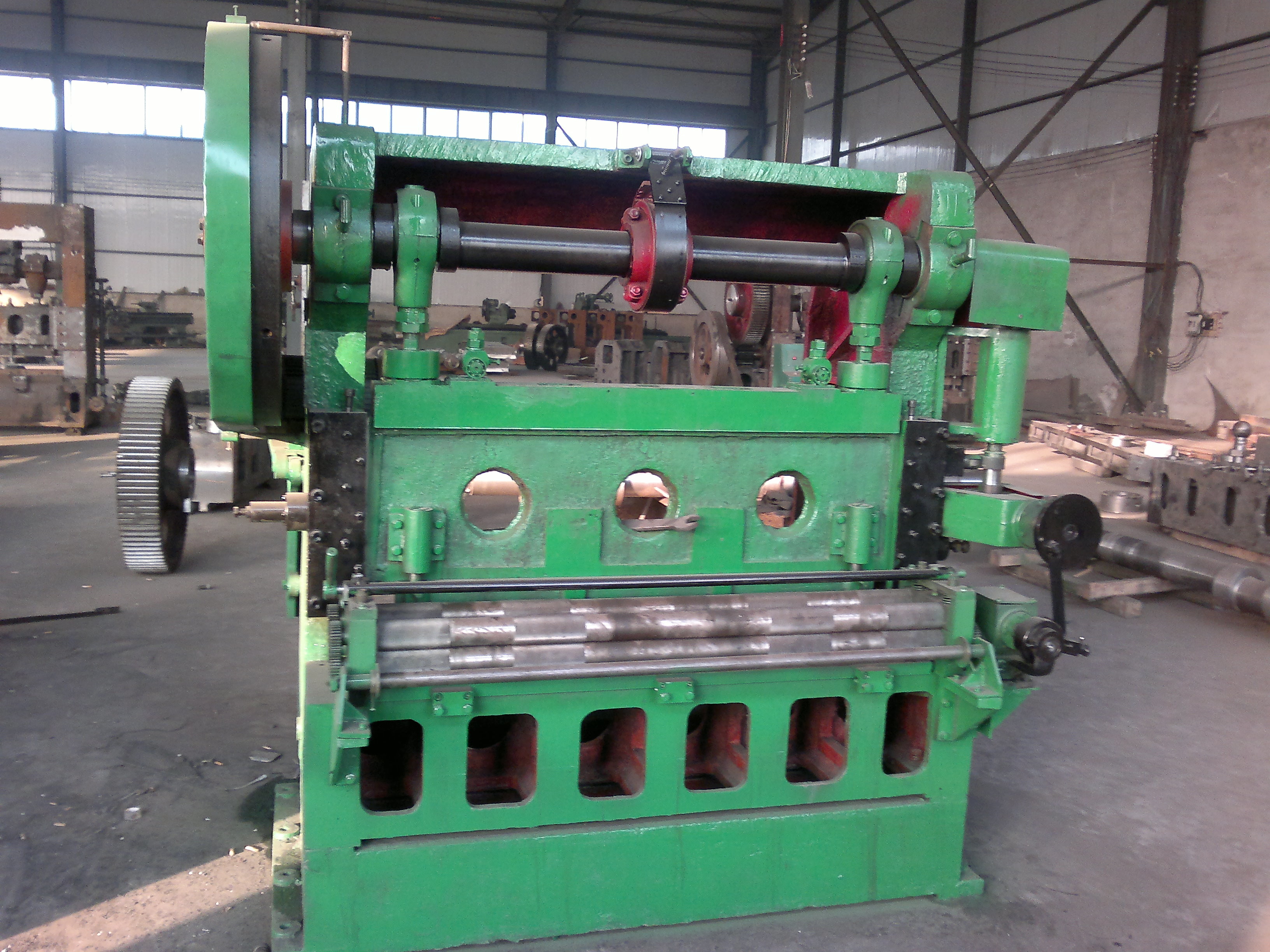

Full Automatic Expanded Metal Mesh Machine JQ25-6.3 1.0 Mm Thickness

원래 장소 허베이 성, 중국
브랜드 이름 DIAOZHUO
인증 CE ISO9001
모델 번호 DZ-JQ25-6.3 DZ-JQ25-25 DZ-JQ25-45 DZ-JQ25-63 DZ-JQ25-100 DZ-JQ25-125
최소 주문 수량 1개 세트
가격 variable
포장 세부 사항 woodencase와 비닐 봉투
배달 시간 20-30 일
지불 조건 L / C, D / A, D / A, D / P, T / T
공급 능력 달 당 10sets

무료샘플과 쿠폰을 위해 나와 연락하세요.

WhatsApp:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
재료 강철과 강철 던지기 급식 자동이어서 피딩되기
안전성 기계는 안전을 커버했습니다 엔지니어 유효한 기계장치를 해외로 서비스하기 위하여
두께 1.0 mm 500mm
강조하다

expanded wire mesh machine

,

high speed expanded metal machine

메시지를 남겨주세요
제품 설명

Full Automatic Expanded Metal Machine JQ25-6.3 Max Length Of Mesh 20



Expanded metal machine is also called steel mesh punching and shearing machine, diamond mesh machine, stretch mesh machine, round hole mesh machine, special-shaped mesh punching net machine. Can be stamped into a variety of products with a variety of metal sheets.



All products are produced and processed by advanced computer technology. The hole types are diverse and the arrangement is flexible. In the years of production practice, we have accumulated rich experience in the production and processing of steel mesh, which can cut, bend and edging products. Deep processing such as surface treatment.



The expanded mesh is mainly used in light industry, civil engineering construction cement, mechanical equipment protection, highway fence stadium fence, road green belt protection, etc.





After-sale services:



1.Guarantee period three years since the date of finishing commission.

2.Customer services:24*7 online services.

3.No man factor,exchange the accessory parts for free.If the components break down by mistaken operation,we supply only material cost price.

4.We offer spares free,these spares can be enough for using one year.

5.Can send engineer abroad if needed.



Techincal parameter

Type JQ25-6.2T JQ25-16T JQ25-25T JQ25-40T JQ25-63T JQ25-100T
Material thickness(mm) Max1.0 Max1.0 Max1.5 Max3.0 Max4.0 Max6.0
Net Width(mm) Max600 Max1000 Max1250 Max1500 Max1500 Max2500
Punching Times/Min 300 160 160 80 67 55
Feeding Distance(mm) 0-10 0-10 0-10 0-10 0-20 0-20
Length of Mesh(mm) Max20 Max25 Max40 Max80 Max200 Max200
Motor Power( KW) 2.2 3.2 4.0 11 11 15
Weight( T) 0.95 2 3 6 10 12
Overal Dimension(mm) 950x570x1780 1800x1320x1550 1940x1600x2010 2870x990x2140 2400x3500x2300 3600x2500x3000



we also can make the machine according to the client's requirment
